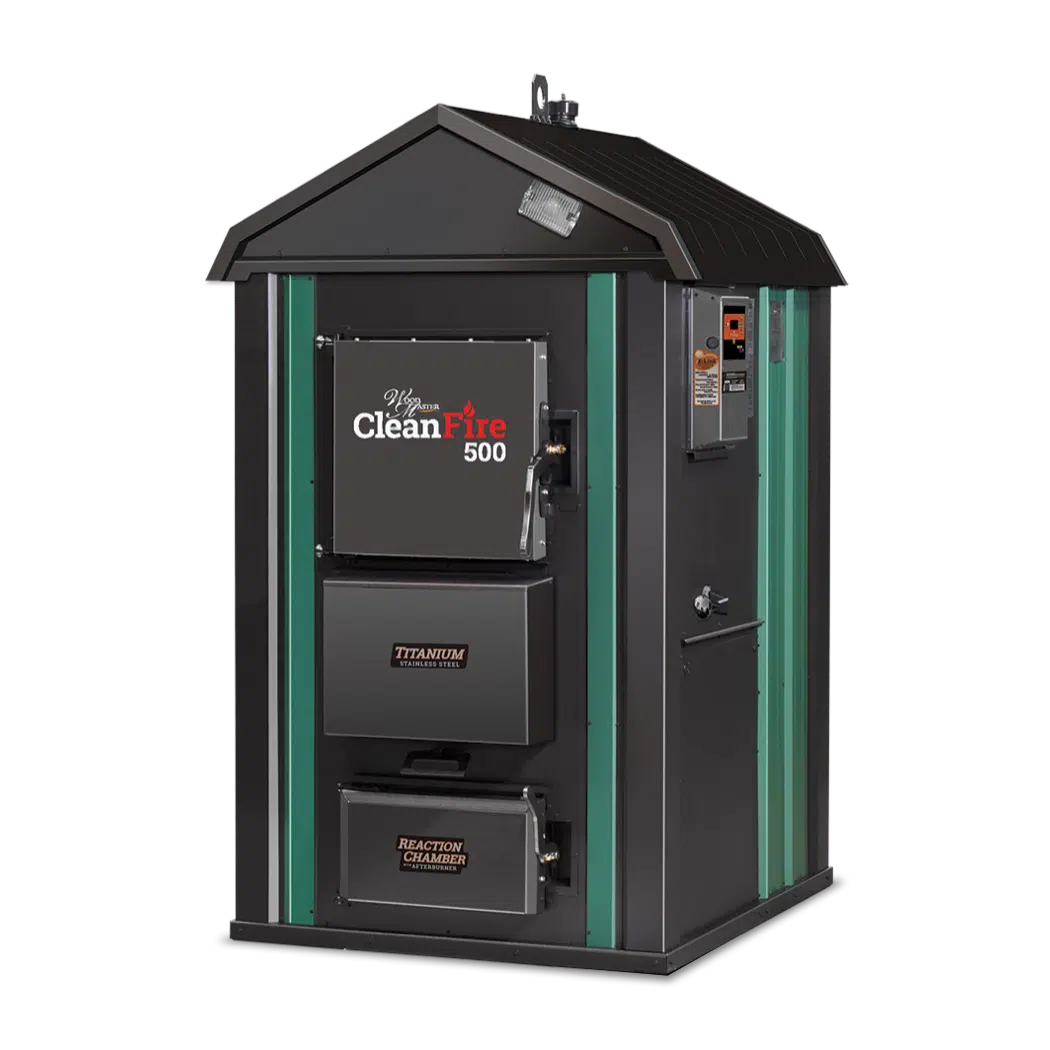

CleanFire 500 Outdoor Wood Furnace

The CleanFire 500 is currently the most popular size in the CleanFire line-up and uses up to 60 percent less wood compared to traditional and other methods of wood heating. CleanFire furnaces are engineered to minimize heat loss, from the construction of the firebox door, panels and pump access area to the airtight, waterproof sprayed-on urethane foam insulation. The larger firebox allows for longer burn times, saving you even more time.

With fossil fuel prices the highest they’ve been in years, more people are making the switch to alternative heating. Free yourself from the stress of high heating bills by heating your home, buildings and more with a WoodMaster outdoor wood furnace.

The CleanFire 500 is EPA Step 2 Certified.

Tax Credit

Overall Efficiency (LHV) – 90.2%*
Overall Efficiency (HHV) – 83.8%*
Manufacturers Rated Heat Output Capacity** – 200,000 Btu/hr
Heat Output (12 hr) – 92,417 Btu/hr



Get Pricing

*Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency. **Based on EPA qualifying test.

Specifications

Furnace Specifications

  • Firebox Volume: 14 cubic ft
  • Firebox Dimensions: 33″L x 32″H x 23″W
  • Door: 18″W x 18″H
  • Ash Cleanout Door: 18″W x 9″H
  • Water Capacity: 205 gal.
  • Weight: 1,668 lbs
  • One set of 1-1/4″ Supply and Return Ports
  • Bypass Door and Alarm
  • Furnace Options and Accessories: LED Light Kits

CleanFire Base and Dimensions Illustration

Colors

Copper Bronze
Copper | Bronze

Ecl Charcoal
Charcoal | Bronze

Ecl Green
Green | Bronze

Ecl Taupe
Taupe | Bronze

Features

Features/Benefits

Easy, Convenient Operation

The FireStar combustion controller constantly monitors how the wood is burning and automatically adds air where and when it’s needed for the cleanest, most efficient combustion.

  • Reserve Mode – reserves a portion of the previous wood load so you’ll never have to relight a fire
  • Burning Time Monitor – helps to estimate how much wood is left
  • Clean Reload – can eliminate smoke when you open the firebox door to add wood
  • Text Alerts – enable this feature if you want to be notified when it’s time to add wood

The FireStar Controller with onboard Wi-Fi keeps you informed of your furnace’s performance and operation. View operational information and receive text alerts on your smartphone or computer. Watch a live demo at MyFireStar.com/demo.

Firestar Demo Button

Top Performance

Super-heated gases enter the round chamber of the Afterburner and swirl in a turbulent vortex, creating a Fireball and allowing enough time for complete combustion to occur.

Easy Access

The patented vertical Easy View Heat Exchanger with hinged door provides full access without the use of tools.

Durability

With the titanium-enhanced stainless steel firebox, there is zero corrosion and a lifetime of use, no matter what kind of firewood you burn.

Manuals

Get pricing.

Get pricing and more information on products, options and installation.
